2005 Atlas Copco T4W

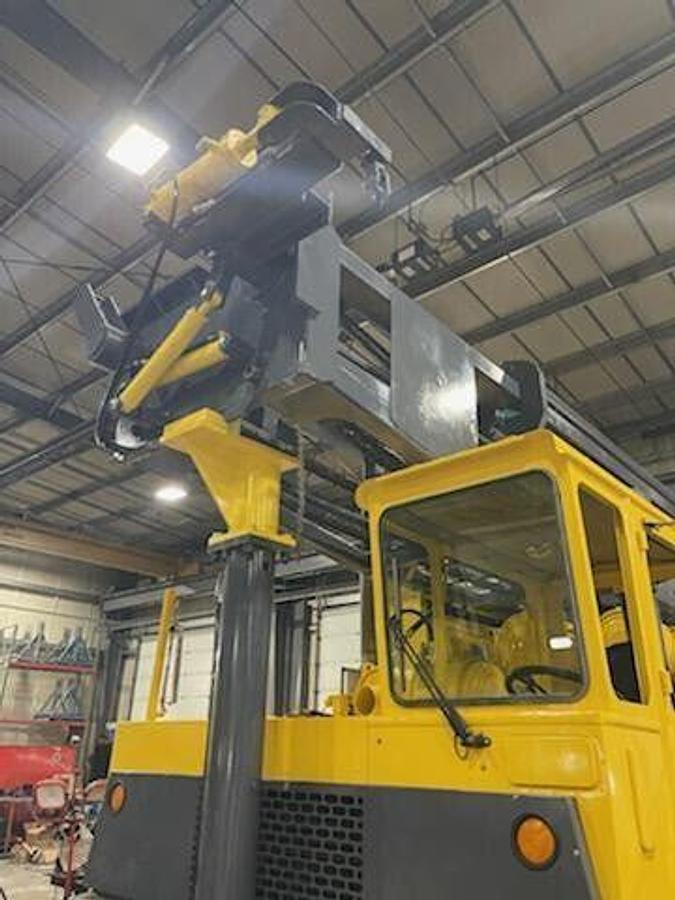

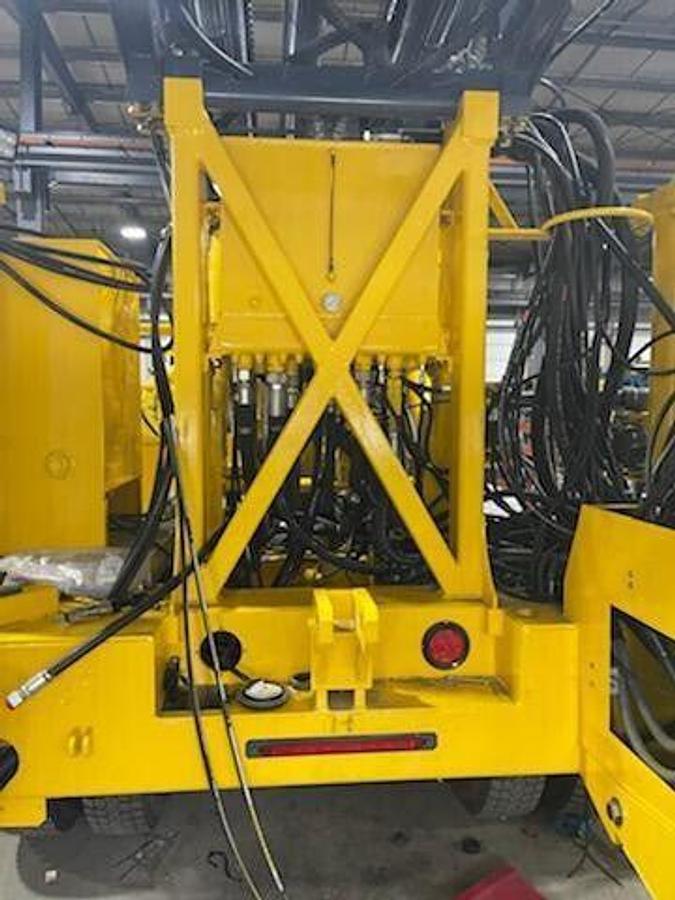

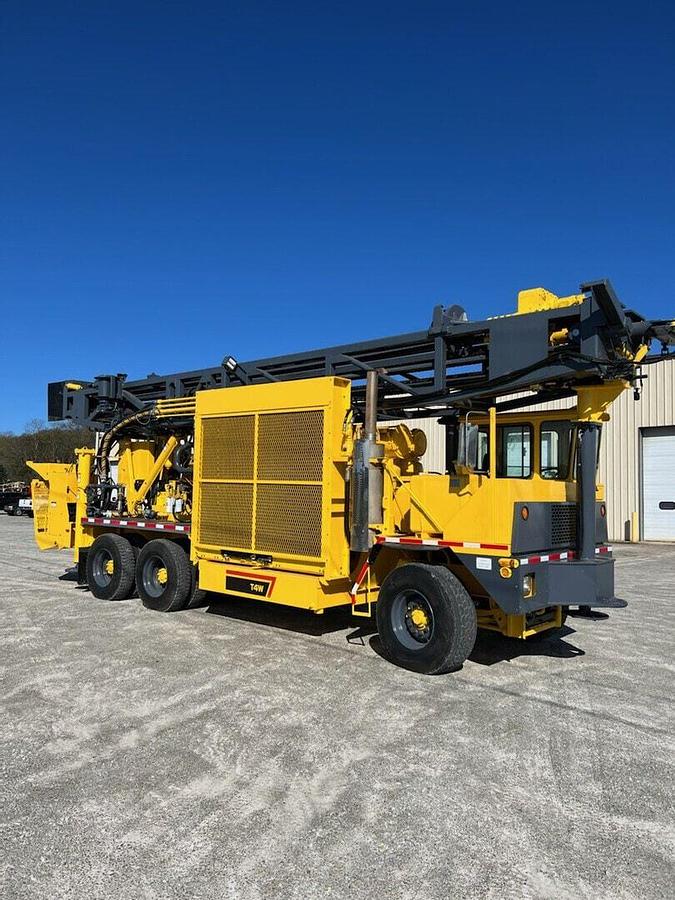

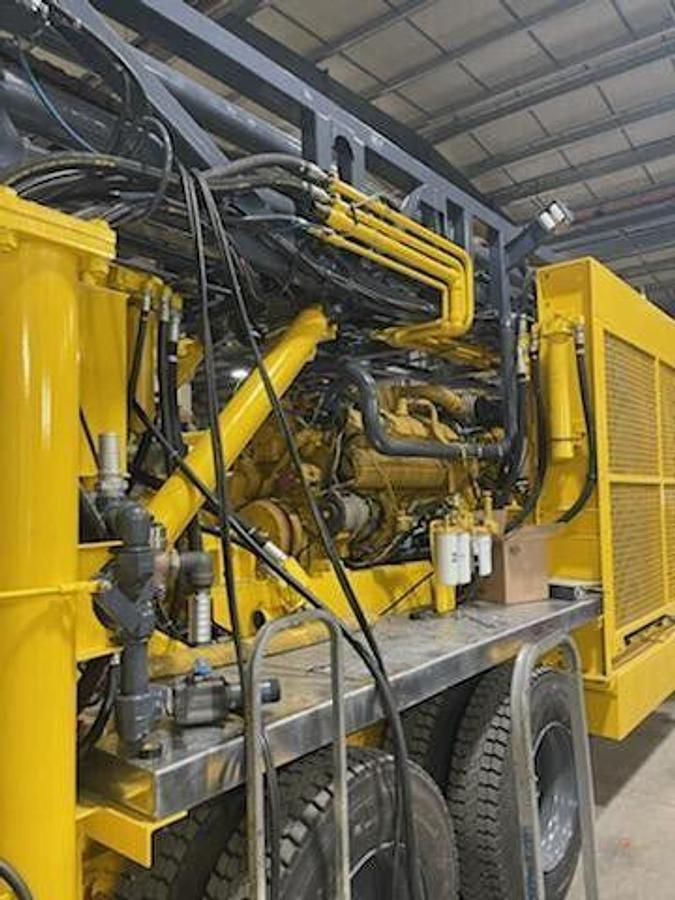

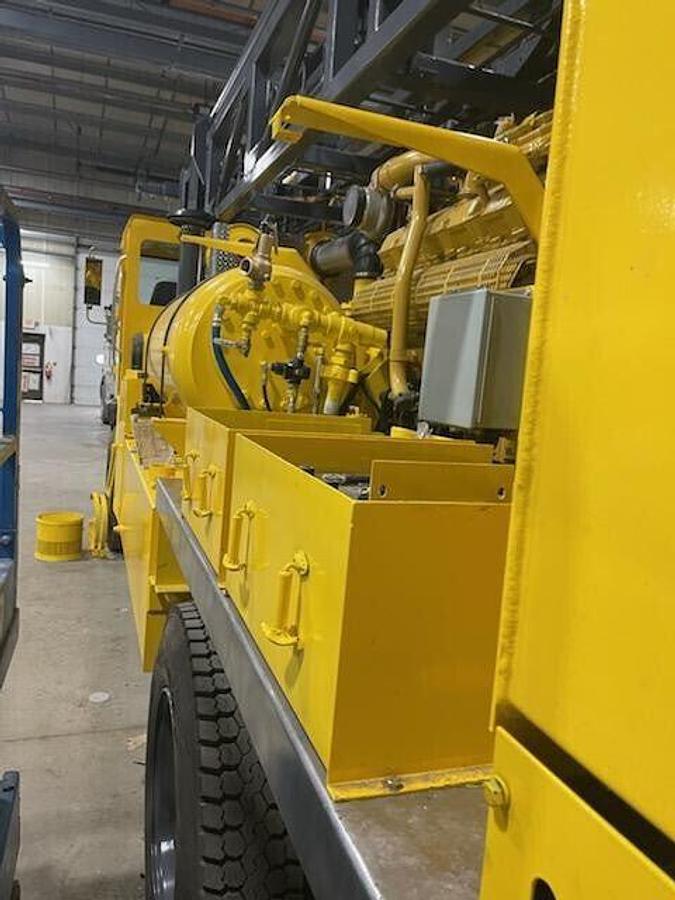

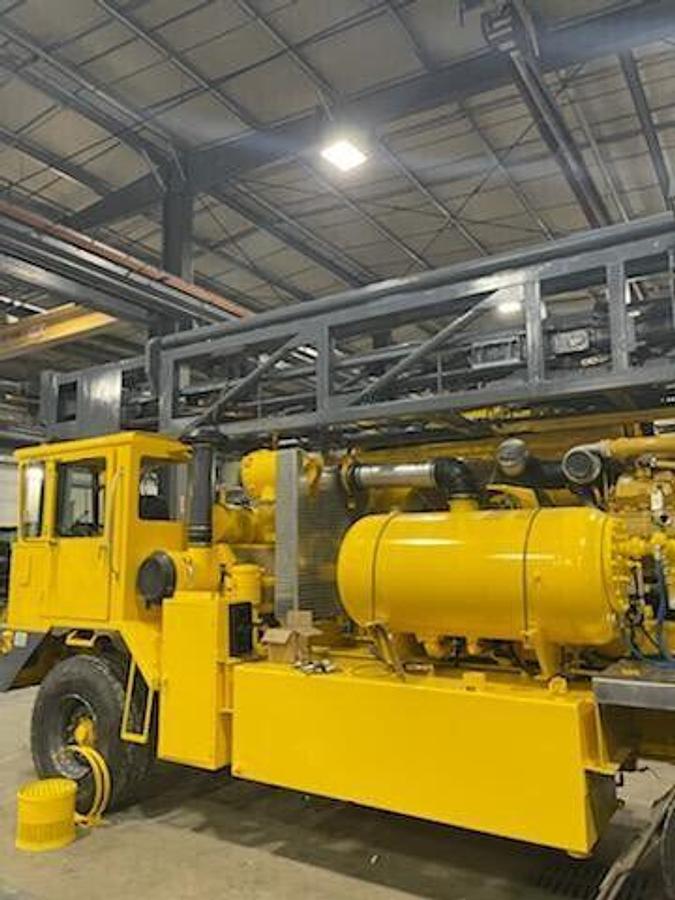

Newly Rebuilt T4W Crane Carrier, 6x4 truck Truck miles: 21,490 miles Truck hours: 1,139 hours Pullback: 70,000 lbs. Pulldown: 30,000 lbs. Tower: 33 ft.​ Compressor:​ IR HR2.5 (Rebuilt by Keystone) Output: 1250 cfm /250 psi Deck Engine: 750 Hp Cat 3412E​ Air Piping: 2" Rotary Head: IR Spur Gear​ Torque: 8,000 ft/lbs RPM: 0-110 Variable Rod Handling: 7 rod carousel​ Pipe Size: 4.5" x 3 1/2' Reg x 25 ft Hammer Lubricator: Electric DHD 60 gallon Casing hoist winch: 8,000 lbs Jib Hoist: 1,250 lbs Axel ratings: 24k Front / 52l Read standard Transmission: 8 Speed Eaton LL Fuel tank: Dual tanks 345 gallon capacity for deck engine In addition to the Epiroc parts ordered for this drill, the engine was sent out to CAT for Dyno testing. All injectors were replaced to bring the engine back up to the rated spec. Complete drill is painted in AC Yellow and Gray. Deck engine exhaust system is completely new including wrapping. Cab and Fenders had all rust removed and replaced with new steel. Tower was repaired at the point that the carousel attaches. All valves, pumps and motors were rebuilt. 11 spool is a new valve direct from Epiroc. Air end is a KDS rebuild. All coolers were sent out for testing, and repaired. Radiator was recored.
