2007 Atlas Copco RD20

See attachment

Equipment Description

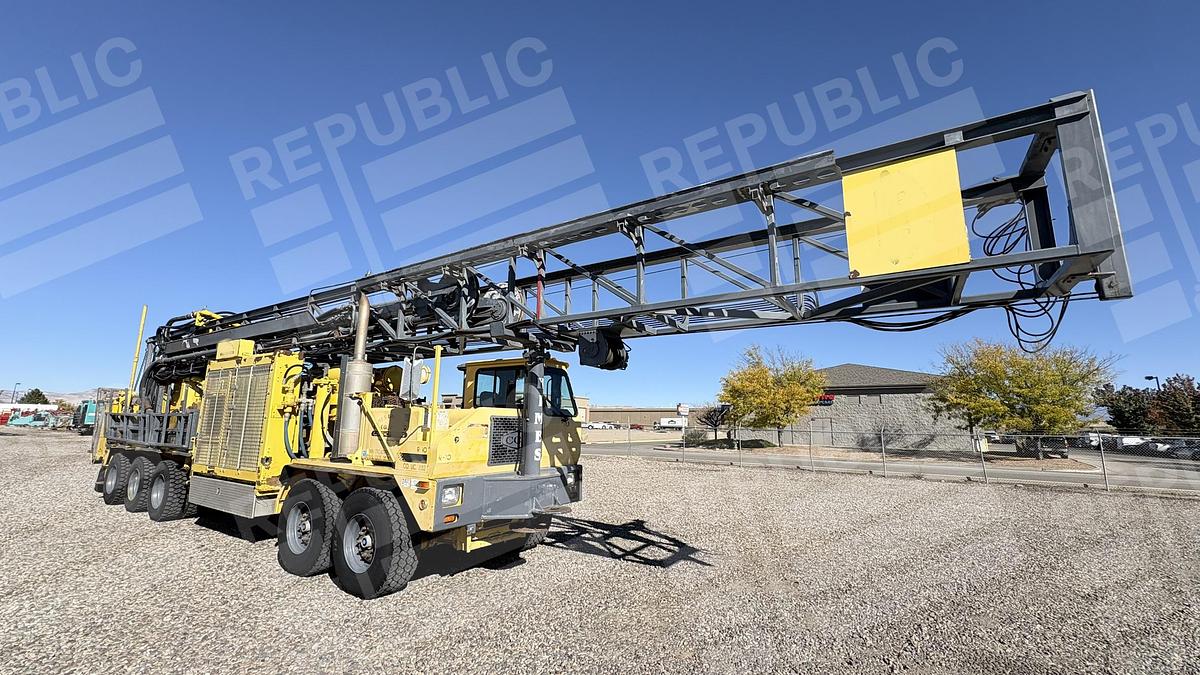

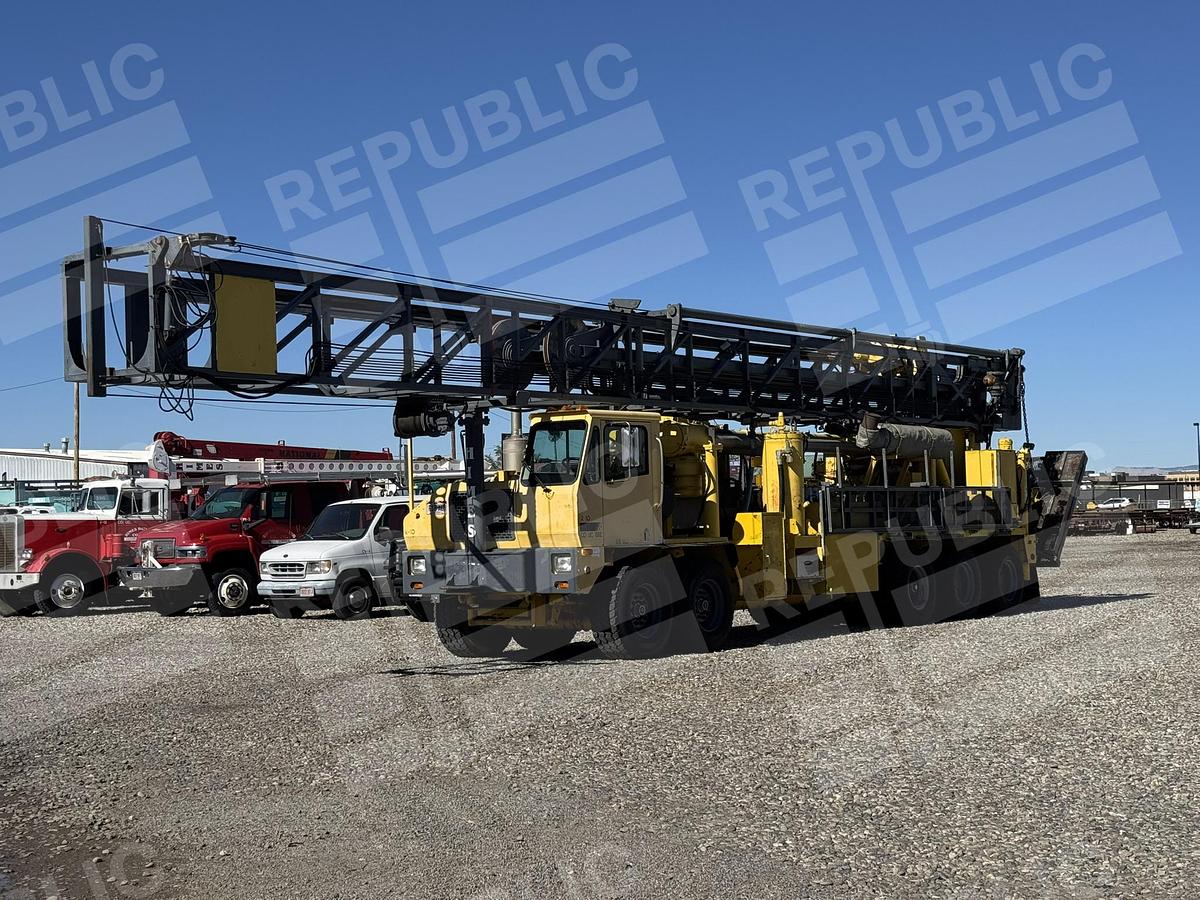

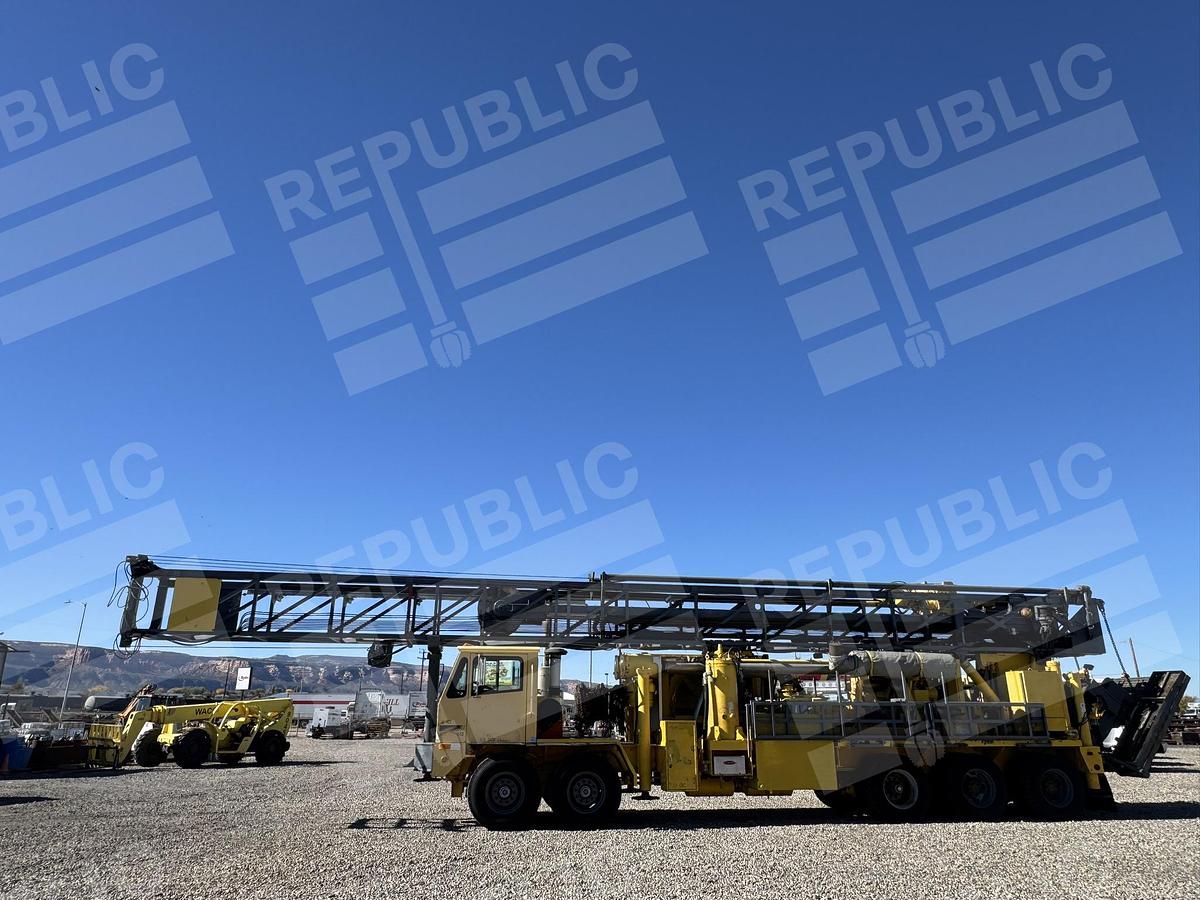

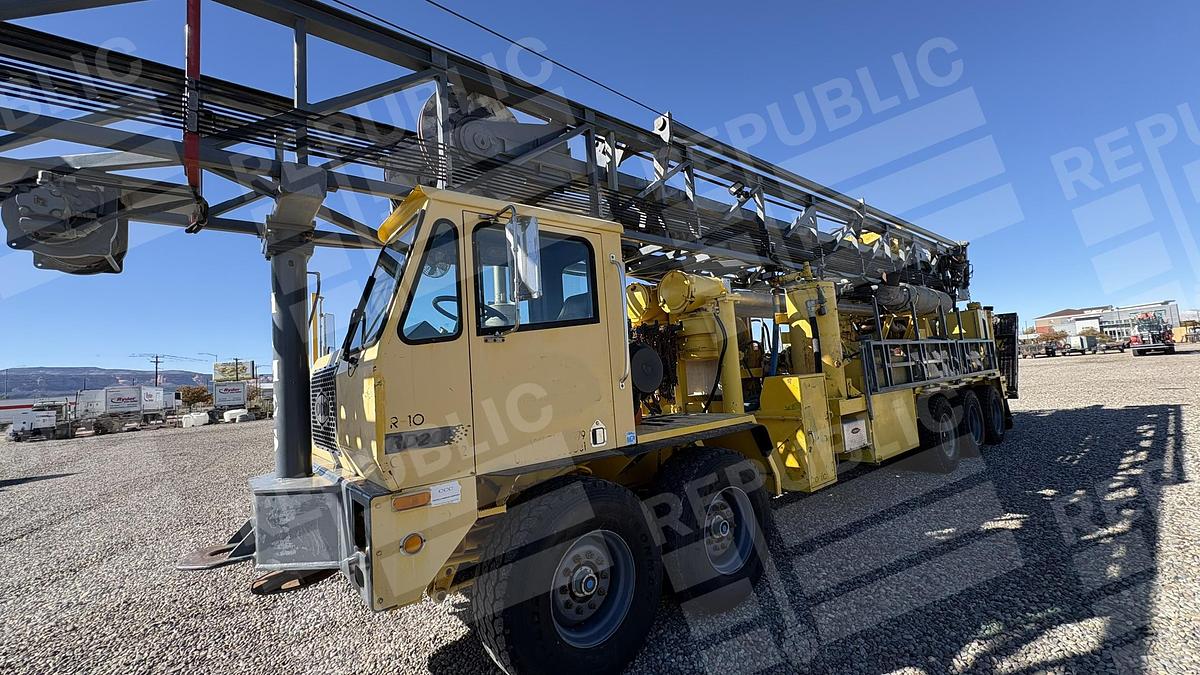

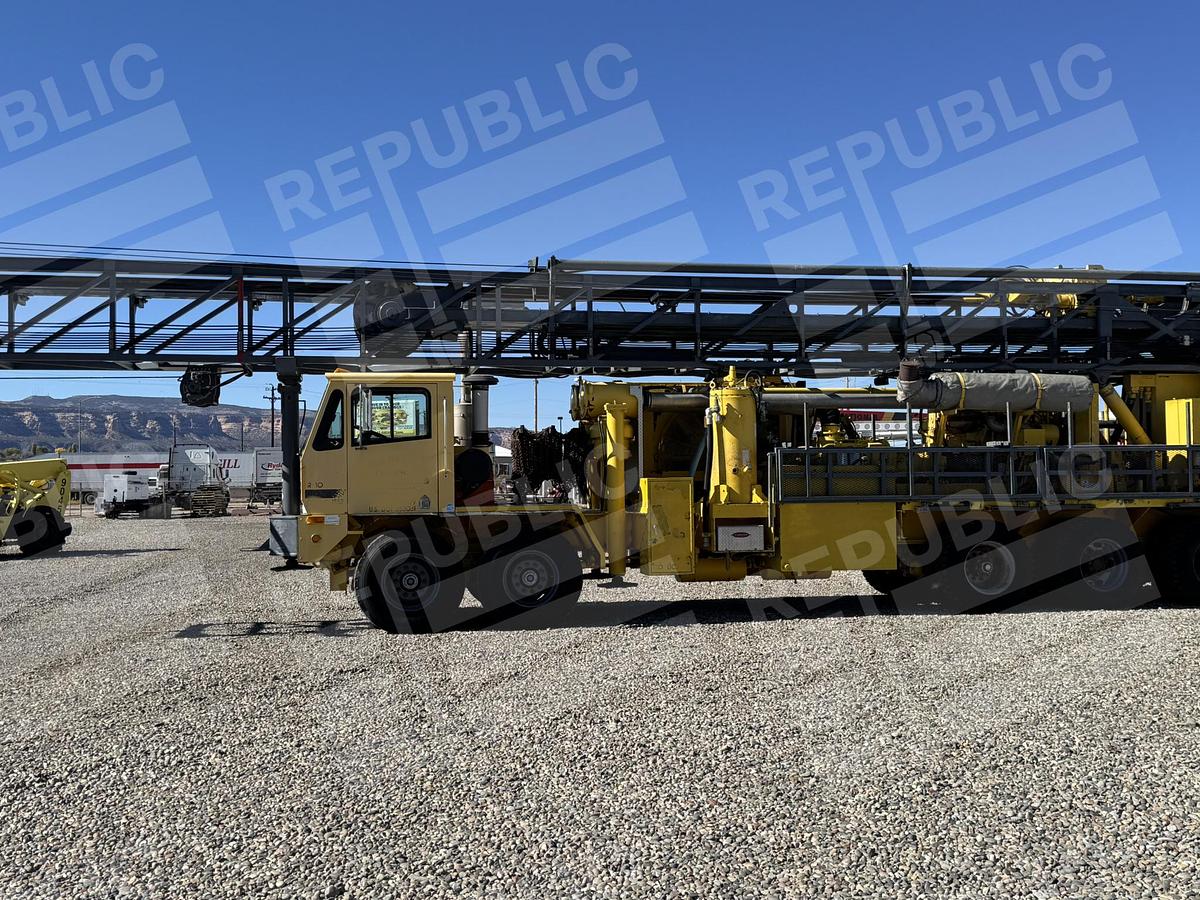

The Atlas Copco RD20 is a heavy-duty, truck‑mounted rotary drilling rig designed for water well, mineral exploration, oil & gas, and geothermal drilling operations. Known for its durability and massive pullback capacity, the RD20 is engineered for high‑production drilling in demanding environments. This unit is mounted on a specialized multi‑axle carrier and includes an integrated drill pipe handling system.

Key Features

• Powerful rotary head for high‑torque drilling applications

• Heavy‑duty mast capable of deep drilling and large‑diameter holes

• Multi‑axle heavy‑haul carrier for stability and mobility

• Integrated pipe handling system for improved safety and efficiency

• High‑capacity mud pump compatibility

• Hydraulic leveling jacks and stabilizers

• Designed for quick setup and teardown

Power System (Typical RD20 Specifications)

• Engine: Caterpillar diesel engine (commonly CAT C15 or CAT 3406 on this generation)

• Horsepower Range: 475–550 HP

• Electrical System: 24V

• Fuel Capacity: High‑capacity tank integrated into carrier

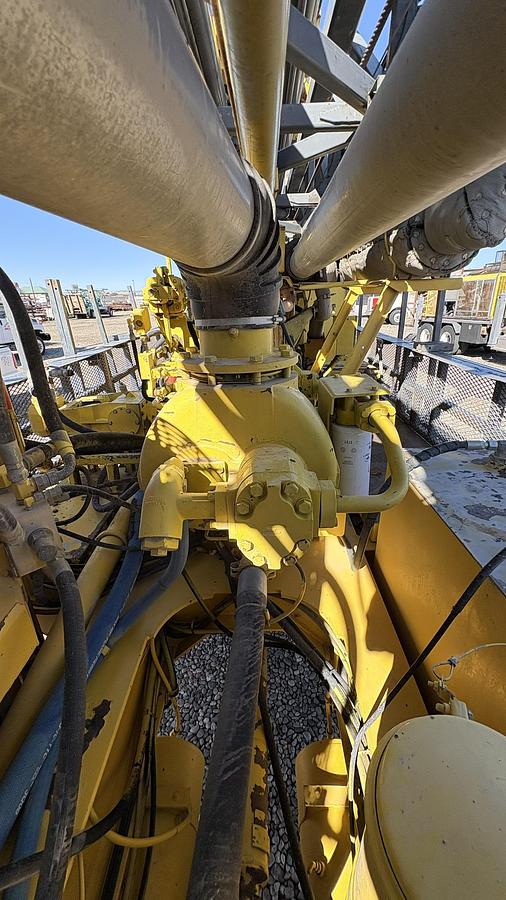

Rotary Head

• Max Rotary Torque: Approx. 30,000–35,000 ft‑lbs (varies by HR rating)

• Max Speed: 0–250 RPM

• Drive Type: Hydraulic

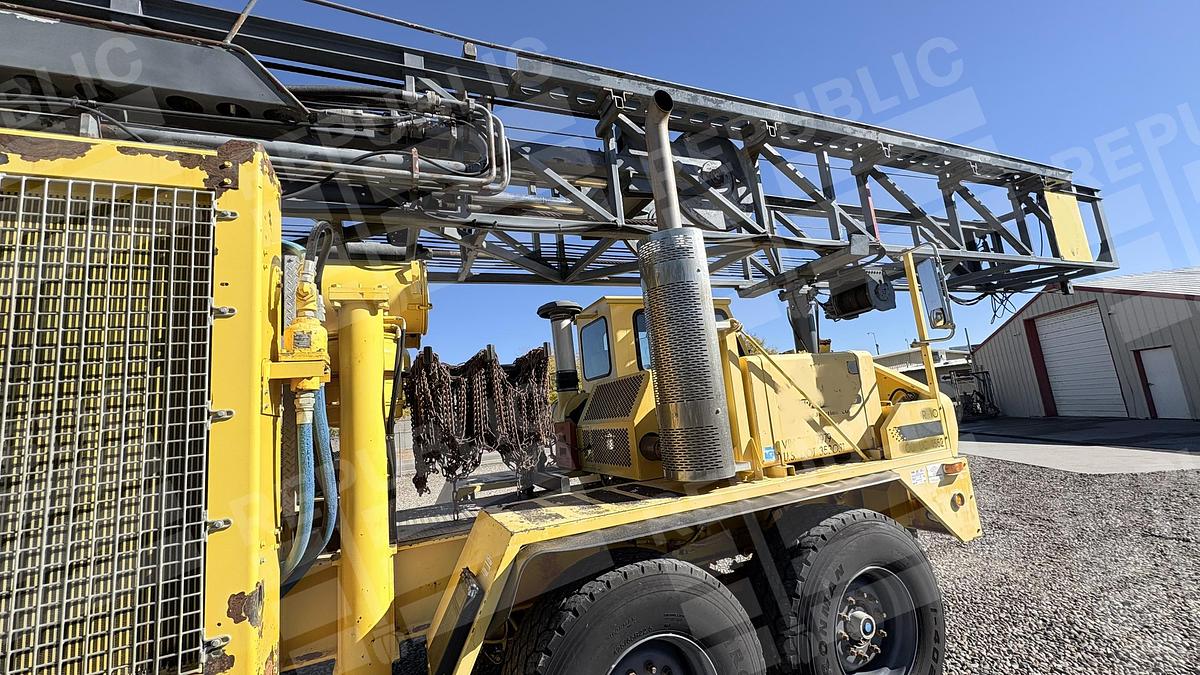

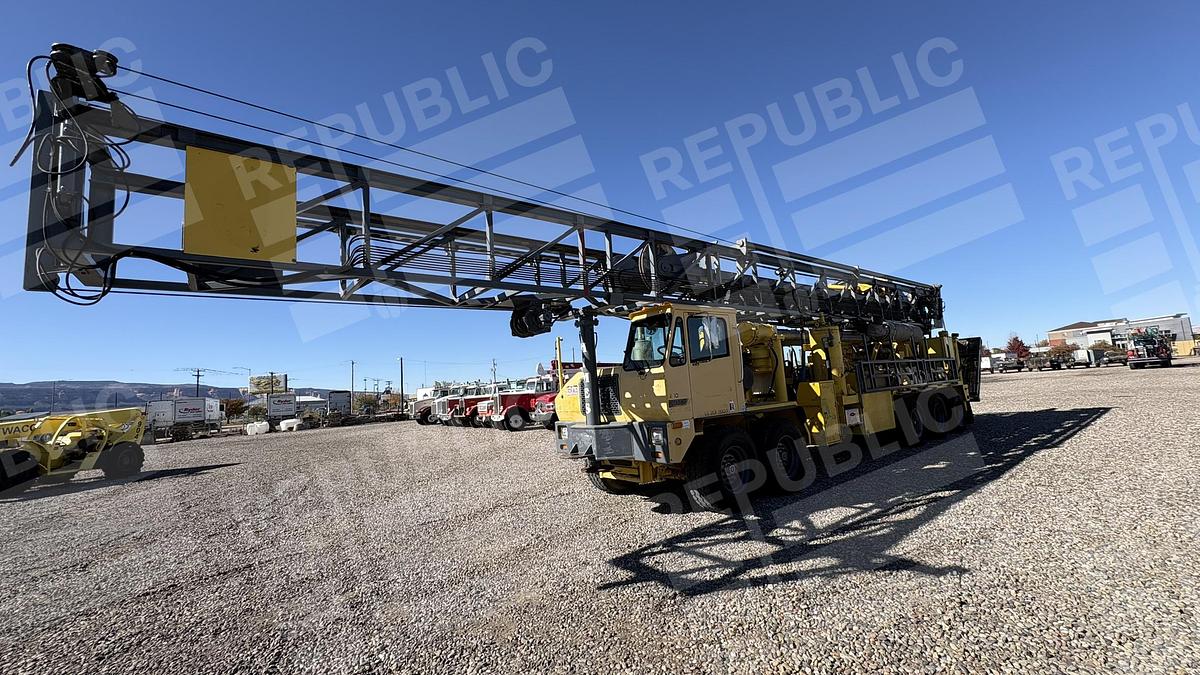

Mast & Hoisting System

• Pullback Capacity: 125,000+ lbs class

• Feed System: Hydraulic cylinder feed

• Mast Height: Approx. 40–45 ft (standard RD20 mast)

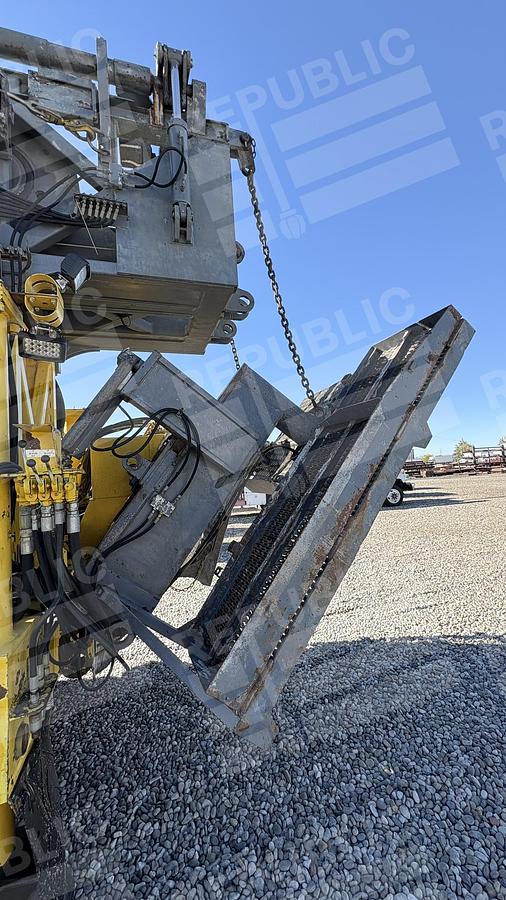

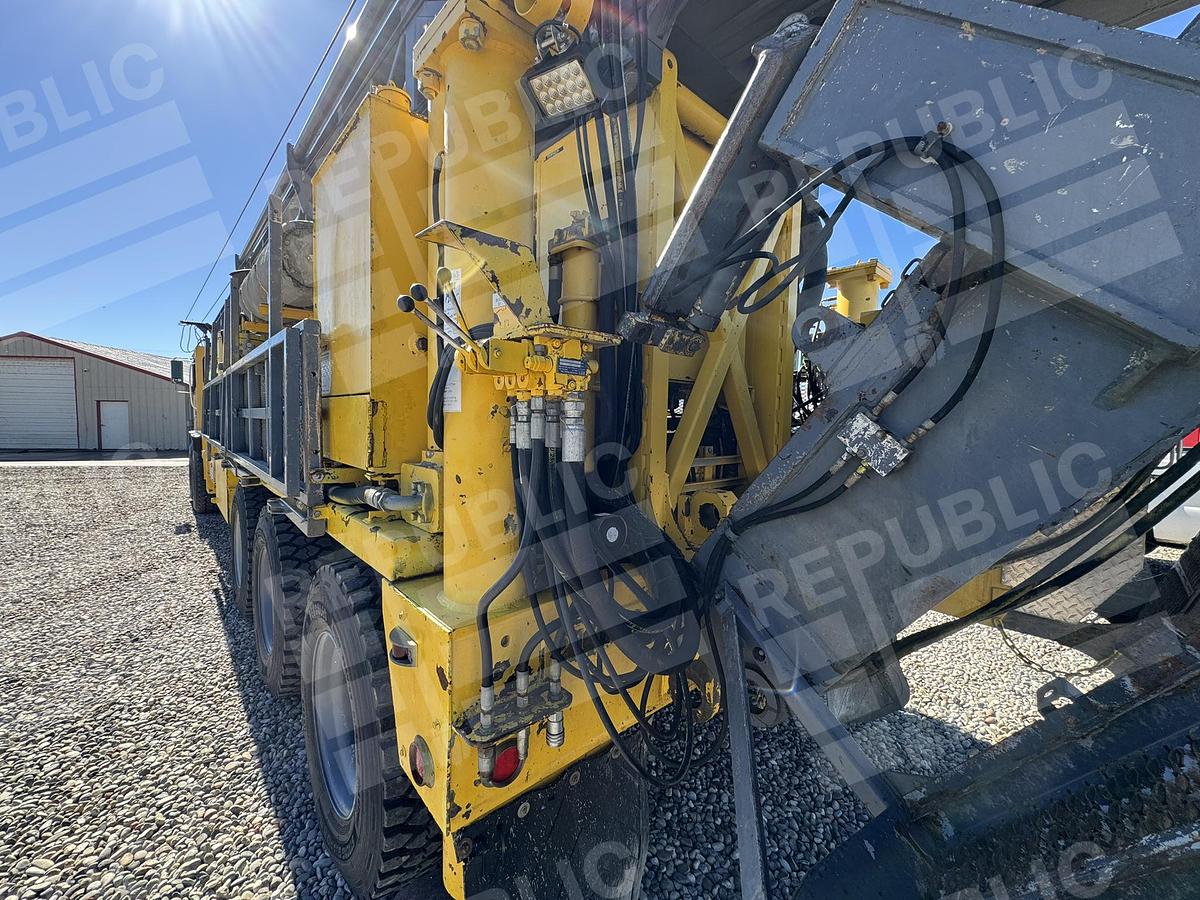

Pipe Handling System

• Integrated pipe rack

• Hydraulic pipe loader/tilt system

• Designed for fast and safe pipe handling

Mud System Compatibility

• Compatible with high‑output mud pumps

• Typical Mud Pump Range: 600–1,600 GPM depending on configuration

• External standalone pump required (not integrated into rig)

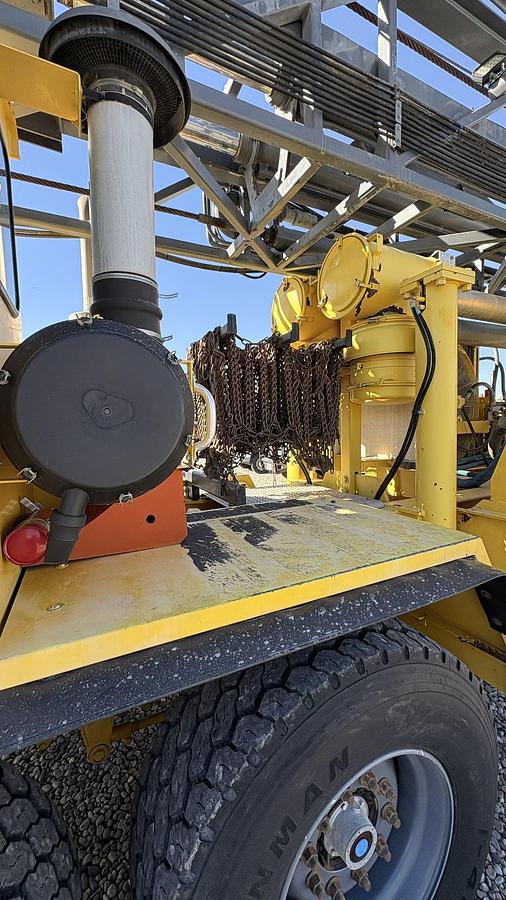

Carrier Information

• • Multi‑axle carrier (likely 6x6 or 8x8 depending on configuration)

• • Air brakes

• • Heavy‑duty off‑road chassis

• • Hydraulic outriggers for leveling
